Color Hole
Item No.: CH
Brand: MIKADO (Made-In-Japan)
Formwork Applicable: Plywood
Use: For heavy equipment
Type: No after-treatment of nails required
Type of fixing: Pre-fastening
- Troublesome after-treatment of nails no longer required as it is completely removed from the slab
- A neat finish is realised because a section of the insert exposed underneath the slab is limited
- Eliminate the need for overhead drilling
- A single nail allows precise driving of the insert at the marked position
- Allows installation after placement of reinforcement
- Fixtures can be reused and installed on the formwork when the marked position is the same
- Suitable for hanging heavy items like sanitary and air conditioning systems
- Suitable for armor construction and flying floor construction methods
- Insured with product liability insurance
|
Part No. |
Thread Size |
Effective Embedded Depth (mm) |
Embedded in Concrete, Pullout Test Result |

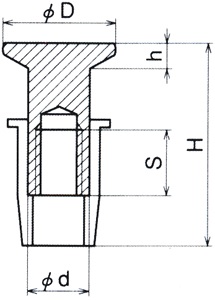

Effective Thread Length S (mm) |
Diameter of Head D (mm) |
Diameter of Core d (mm) |
Height H (mm) |
Thickness of Head h (mm) |
Quantity/Carton (pcs) |
|
|
Max Pullout Force (kN) |
Concrete Compressive Strength (N/mm2) |
|||||||||
|
CH-3040 |
W3/8 |
38 |
22.3 |
19.0 |
13 |
22 |
12 |
40 |
5 |
500 |
|
CH-3050 |
W3/8 |
48 |
25.7 |
23.5 |
13 |
22 |
12 |
50 |
5 |
400 |
|
CH-4060 |
W1/2 |
57 |
38.6 |
28.0 |
25 |
28 |
17 |
60 |
8 |
250 |
|
CH-5070 |
W5/8 |
65 |
45.2 |
22.3 |
30 |
37 |
22 |
70 |
10 |
100 |
|
CH-M1040 |
M10 |
42.5 |
20.8 |
23.6 |
13 |
22 |
13 |
45 |
5 |
500 |
|
CH-M1050 |
M10 |
52.5 |
26.8 |
23.6 |
13 |
22 |
13 |
55 |
5 |
400 |
|
CH-M1260 |
M12 |
57 |
38.6 |
28.0 |
25 |
28 |
17 |
60 |
8 |
250 |
|
CH-M1670 |
M16 |
65 |
45.2 |
22.3 |
30 |
37 |
22 |
70 |
10 |
100 |
*Pullout test values are values when the insert breaks

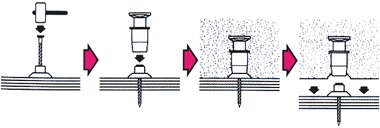

- Drive a threaded nail at the marked position using a hammer and attach a locating fixture on the formwork
- After placement of reinforcing bars, place the insert onto the locating fixture
- When concrete is placed, it will not penetrate into the inside of the insert because it is plugged by the locating fixture
- When the formwork is removed, fixtures and nails are also removed because they are attached to the formwork, and after-treatment of nails is not required. The fixtures on the formwork can be easily removed using a crowbar.
