MASON Hammer Drive Anchors

  • Light duty applications
  • Fast and easy installation
  • Hardened nail for easy expansion


Setting Procedures

Drill a hole of required diameter and depth.


Insert anchor through the fixture hole.


Insert anchor into the hole.


Drive anchor with hammer until the centre nail is flush on top of the anchor.


Selection Chart and Setting Parameters


Basic Loading Data for Single Anchor in Concrete

  • Non-cracked concrete C20/25, = 25N/mm2
  • Correct setting
  • No spacing and edge distance influence

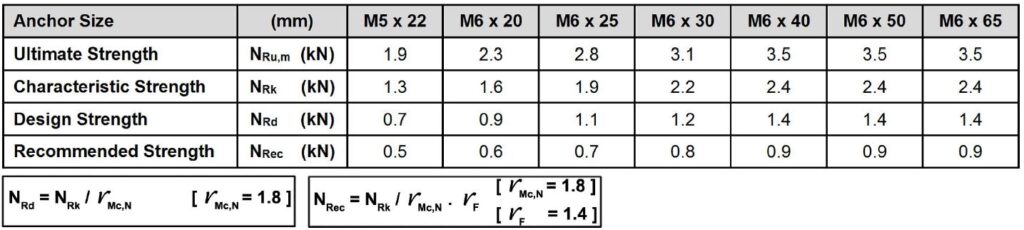

Tensile Resistance


Shear Resistance
