MASON Tie-Wire Anchors

  • Light-duty applications
  • Quick and easy installation
  • Anchor easily can be set by pulling the head with a claw hammer
  • Suitable for suspended ceiling and lightweight suspension anchor point







Setting Procedures

Drill a hole of required diameter and depth.



Drive the anchor into the drilled hole.





Set the anchor by prying/ pulling the head with the claw end of the hammer.



Attach steel wire.

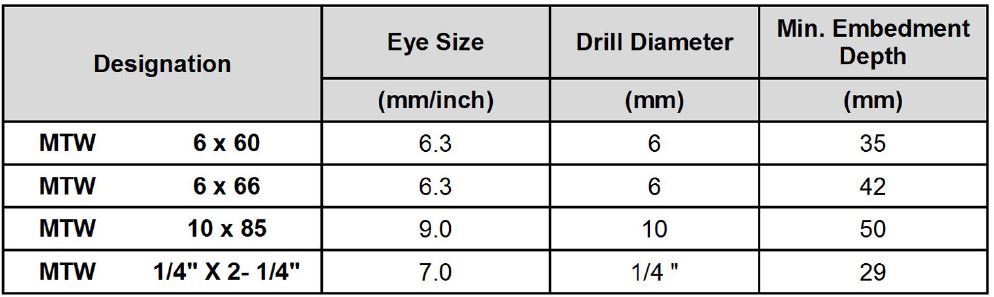

Selection Chart and Setting Parameters

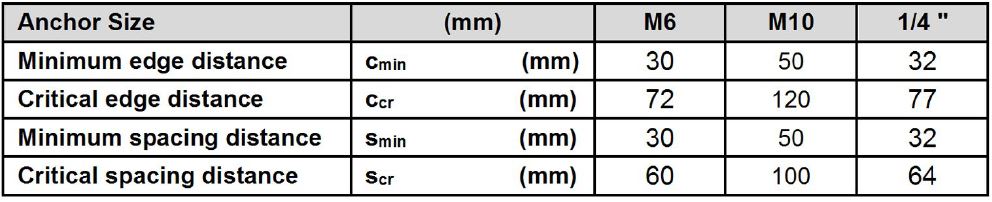

Anchor Spacing & Edge Distance



Basic Loading Data for Single Anchor in Concrete

  • Non-cracked concrete C20/25, = 25N/mm2
  • Correct setting
  • No spacing and edge distance influence



Tensile Resistance
