MASON Nylon Anchor
Light Weight Nylon Expansion Anchor for
- Light-duty applications
- Pre-assembled quick and easy installation
- Removable fixing with philip drive screw head
- Polymide (Nylon) plug for uniform expansion
- Temperature resistance -30°C to +70°C
Item No.: MNA
Brand: MASON
Use: Post Installed Concrete Anchor
Type: Mechanical Expansion Anchor
Type of fixing: Light Weight Fixing
Carbon Steel (Galvanised to 5 micron)
Stainless Steel A2-70 (SUS 304) ISO 3506
Stainless Steel A4-70 (SUS 316) ISO 3506

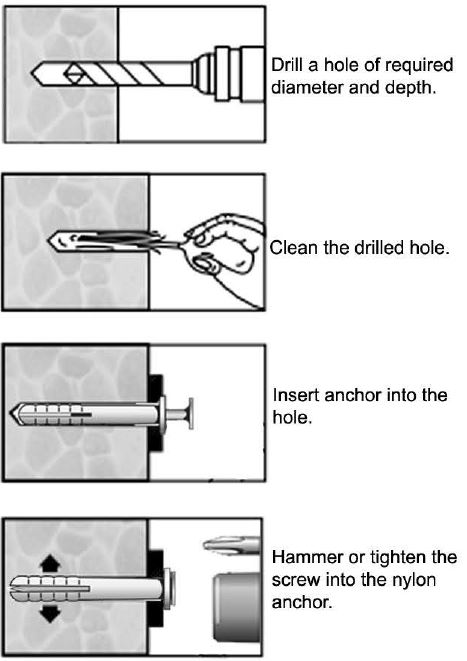

Setting Procedures

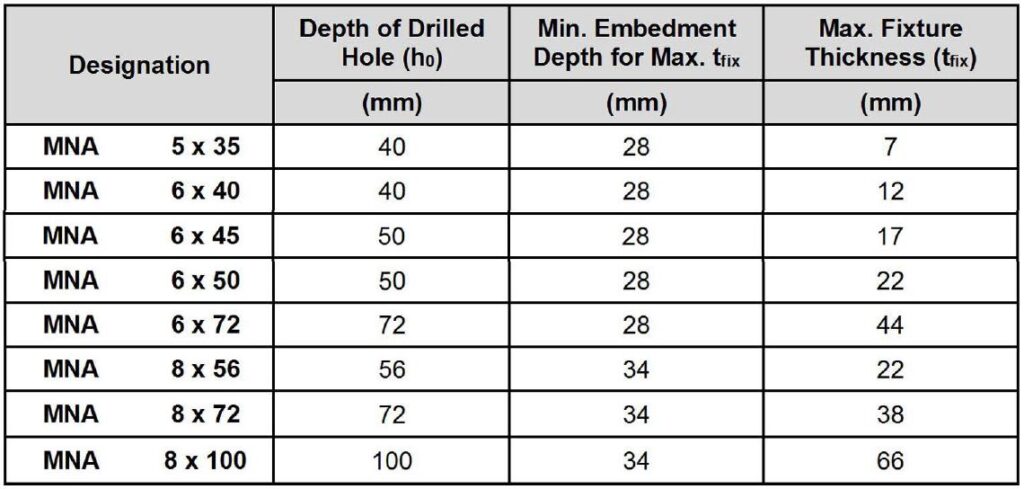

Selection Chart & Setting Parameters

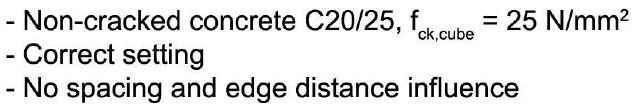

Basic Loading Data for Single Anchor

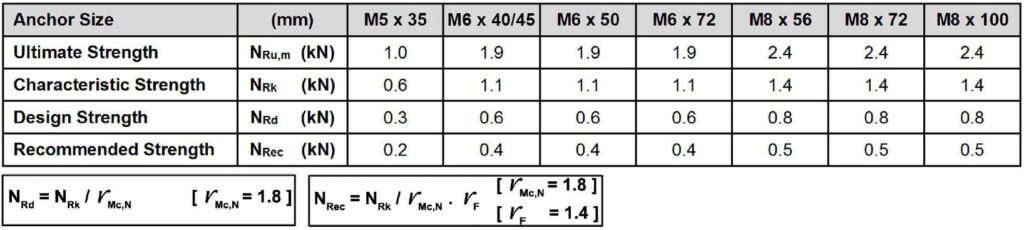

Tensile Resistance

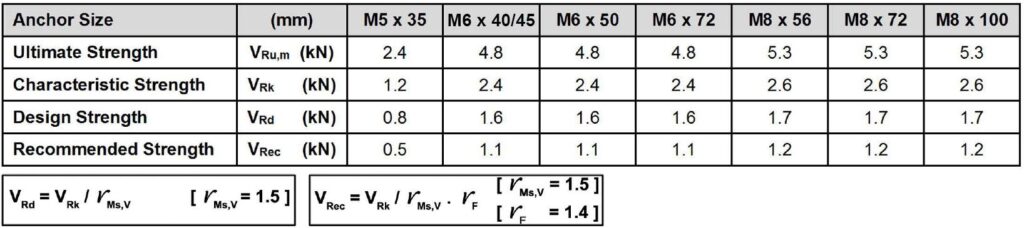

Shear Resistance
PDF download
