NAKA Luminous Stair Nosing – Hi-Step SLIM – NAP50

Standard stair nosing with a rubber tread insert to prevent fall accidents on stairs.

Two types are available: for plastic tiles and for carpet tiles.

Cycle fatigue testing, dimensional stability testing and weather resistance testing (accelerated exposure of 300 hours) have been conducted.

Pattern: Stripe

Material Base: Extruded Aluminium A6063S-T5

Finish: Anodised Finish

Dimensions: 50 x 24 x 3.5mm

Vinyl Tyre: Extruded PVC contain elastic prevention material

Luminance Band: Luminance soft PVC; Luminance colour is one colour (Light green) only for any colour of PVC tyre

Item No.: NAP-50

Brand: NAKA

Use: Stair Nosing

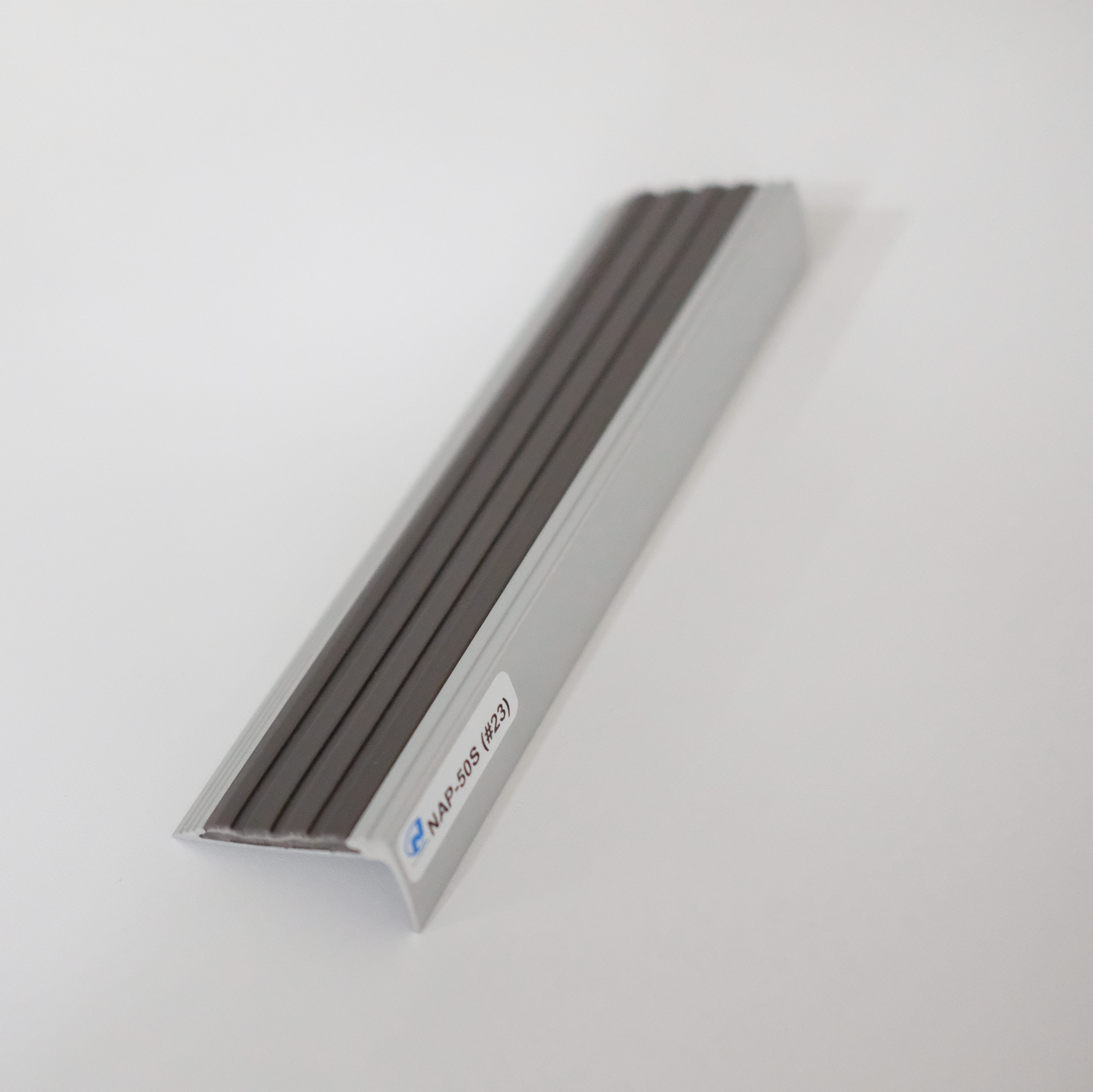

Product Preview

Visibility Data

*1 Cut off light for 24 hrs. then irradiate with 200lx of light for 20 minutes. The luminance of the luminance band after 60 minutes have passed.

*2 The time required to reach the luminance shown in the table after irradiating with light under the above conditions. In our company’s judgement, the minimum luminance required for conducting a safe escape is 3mcd/m².

lx (Lux – one lumen per square metre)
mcd/m² (Millicandela per square metre)

Degree of Luminance and Brightness

Luminance mcd/m²	Sensation of Brightness in the Dark
5 or above	Extremely bright, objects are clearly discernibled.
3	Outlines of objects are discernible.
2	Dim and blurred, objects can be roughly discerned.
1 or below	Objects are barely discernible.

On the JIS Standard for Luminous Safety Signboards

The JIS Standard (JIS Z9107 Afterglow Luminance on Luminous Safety Signboards), stipulates that afterglow luminance should be 7mcd/m² after 60 minutes.

With Hi-Step SLIM, the performance level is reported to be more than double that of the above standard.
